Home /Products/Sanitizer Box Machine/High Pressure Metal Autoclave Steam Sterilizer Machine 45L Class B For Medical Waste

High Pressure Metal Autoclave Steam Sterilizer Machine 45L Class B For Medical Waste

1.0 Sets
MOQ
High Pressure Metal Autoclave Steam Sterilizer Machine 45L Class B For Medical Waste
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: EC-45L
Power Source: Electric
Warranty: 2 Years, 2 Years
After-sale Service: Online Technical Support
Material: Metal, Plastic, Steel, Resin, Stainless Steel
Shelf Life: 2 Years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: EN 61010-1:2010, AMD1:2016 / EN 61010-2-040:2015
Color: White
Certificate: CE ISO RoHS
LOGO: OEM
Output: Buit-in Printer, SD Memory, Tag Printing
MOQ: 1 Set
Packing: Wooden Case
Working Principle: Pre Vacuum High Pressure Steam Sterilize
Display: Touch Screen
Basic Infomation
Certification: ce, CE ISO RoHS
Model Number: EC-45L
Payment & Shipping Terms
Packaging Details: Plywood Box , Wooden Box
Supply Ability: 2000 Set/Sets per Month
Product Description
Product Description

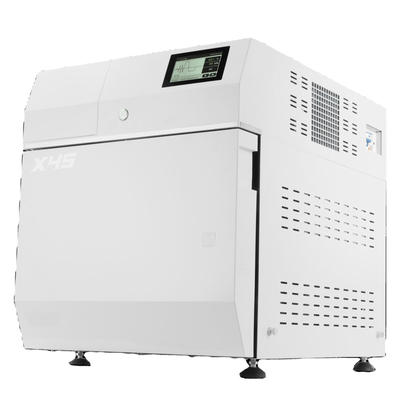

Table Top Class B Medical Pre-vacuum Steam Sterilizer Autoclave 45L
Our autoclave EC-45L puts an end to all your troubles wiith following features:
- With very compact design, our EC-45L only takes up a depth of 60cm of your workbench.
- EC-45L is designed with low power consumption, which just requires 220V civil power supply.
- EC-45L has two separated buil-in water tanks, an open clean water storage tank which is convenient for filling water and
cleaning. A closed waste water tank which effective prevent corss contamination.
- EC-45L adopts our invention patent technology of back flow water which realizes the lowest consumption 500ml for three times
prevacuum sterilization cycle.
Our innovation never stops...
Product Paramenters
Specific Data of EC-45L
Model
EC - 45 L
Power supply
220V/50Hz
Sterilization temperature
121℃ and 134 ℃ two options
Sterilization chamber
304 stainless steel, with thickness ≥ 3 mm
Min.installation depth of bench
600mm
clean water tank
sealed, 7 liters
Lock ystem
Self adaptive thread lock
Drying system
AI intelligent drying
Data output
thermal printer, tag printing, SD card memory
Shortest sterilization cycle
less than 35 Min.
Dimension
576*726*647mm (L.W.H)
Chamber size
319*617mm
Net weight
104kg
Gross weight
111kg
Parameters of Preset Programs
Program
Sterilization temperature（℃））
Temperature range
Pressure range（kPa）
Holding time（Min）
Pre-vacuum times
Drying time（Min）
Remarks
134℃ universal
134
134~138
204~242
4
3
15
Preset
134℃ universal quick
134
134~138
204~242
4
3
7
Preset
121℃ universal
121
121~125
112~134
20
3
15
Preset
B-D/Helix test
134
134~138
204~242
3.5
3
7
Test program
Vacuum test
Vacuum to -80kPa，holding 15min
Test program
134℃ Prion
134
134
204~242
19
3
15
Preset
Quality Control & Warranty
96 Checking Points for every Autoclave
Appearance
16 points
Assembly
27 points
Special Requirements
12 points
Electrical Safety
7 points
Fuction
10 points
Regular Faults Checking
10 points
Testing Cycles
3 points
Common Cycles
11 points
Tracking No. for all the main parts for every Autoclave
PCB
Vacuum Pump
Water Pump
Solenoid Valves
steam generator
Chamber
Chip version
Warranty & After Sales
Parts and Description
Warranty (years)
Door Seal
1
Vacuum Pump (Chinese)
2
Vacuum Pump (German)
3
Other Parts
(Valves, Water Pumps,PCB,etc)
3
Consumables
(Air Filter, Printer, Paper, etc)
No Warranty
NOTE:
All spare parts will be offered freely if under warranty;
Serial No. and parts tracking No. will be provided if need replacement.
Usage Scenario
Certifications
Why Choose Us
Payment & Delivery
FAQ

Q1:What is your MOQ ?
A:With regular packaging ,we support small quantity for your use&test market.
Q2:Does sample available before orders ?
A: Yes, SureQ3:What is the warranty of the products?
Q3:What is the warranty of the products?
A:24 months (2year)
Q4: What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30-40 days for large quantity.
Q5: What is your payment term?
A: Usually by T/T.Other ways could be negotiable.
Q6: What is the shipping method?
A: It could be shipped by sea or by express(EMS,UPS,DHL,TNT,FEDEX).Please confirm with us before placing orders.
Q7:Does OEM&ODM available of your company ?
A:Yes ,we support print our client LOGO and help do some art work if needed .
Q8:Which port or airport the goods will be shipping from ?
A:Usually from Shanghai ,China or Ningbo China .It depends the areas our clients come from ..
